Áramköri kártya

Ötleteink segítenek az előrelépésben

A CPU kártya a mikroprocesszor, SoM vagy alternatív lehetőségként egy Raspberry Pi számítógépmodul, a memória, a kommunikációs és LCD interfészek, valamint a fontos biztonsági szabványok kombinációja egy kompakt áramköri kártyán. A kártyák funkciói a bővítő csatlakozók révén egyesével bővíthetők. A nagyteljesítményű és önálló platform sokoldalú és biztonságos befektetés a jövőbeni projektekhez.





  • Kevesebb fejlesztési feladat

    A számos különböző interfésszel rendelkező, szabványos perifériás készlet, valamint a számítógép teljesítménye és a memória mérete igény szerint méretezhető.


  • Üzemi költség nélkül

    A SoM modulon található nagyteljesítményű, kompakt számítógépmag és a kártyán lévő legújabb kommunikációs interfészek kombinációja számos különböző alkalmazáshoz hatékony megoldást kínál.





  • Méretezhető számítógép-teljesítmény

    A CPU egységek a teljesítményigények szerint, egyedi processzorral és tetszés szerinti memóriakonfigurációval választhatók.


  • Előre konfigurált kiszállítási csomag

    Igény szerint rendszerbetöltő programmal, operációs rendszerrel, előre definiált alkalmazással és MAC címekkel.





  • A legújabb titkosítási technológia

    A biztonságos rendszerindítási és egyéb biztonsági funkciók a legmagasabb szintű biztonsági követelményeknek is megfelelnek.





  • Rendelkezésre álló szoftvereszközök

    Az előre konfigurált fejlesztési környezet és a személyre szabott Linux kártyatámogatási csomag segíti az alkalmazás gyors fejlesztését.





  • Széles felhasználási kör

    A SoM (System-on-Module) modul és a Linux kártya kombinációja hatékony és önálló platformot biztosít.





BL i.MX6 ULL/UL

BL i.MX6 ULL/UL

Komplex alkalmazás-processzor, amely használata olyan egyszerű, akárcsak egy mikro-vezérlőegység

  • i.MX6 ULL 1 db Arm® Cortex-A7 @800 MHz
  • i.MX6 UltraLight 1 db Arm® Cortex-A7 @528 MHz
  • 256 MB -tól 512 MB DDR3-RAM

Árajánlat kérése

Tartozékok

  • Hálózati csatlakozókészlet
  • Hálózati tápegység
  • Hálózati microSD-kártya

Szoftver

  • Beágyazott Linux (Yocto-disztribúció)
  • Opcionális Codesys SoftPLC

Műszaki adatok

FunctionStandard Layout ULLStandard Layout ULOptions
Microprocessor
CPUi.MX6 ULL 1x Arm® Cortex®-A7 @800 MHzi.MX6 UltraLite 1x Arm® Cortex®-A7 @528 MHz
Memory SoM Module
DDR3-RAM512 MB512 MB256 MB
NAND-Flash512 MB512 MB256 MB
NOR-Flash1 MB1 MB
Memory SoM Baseboard
eMMC4 GB4 GBUp to 128 GB
SD card1x microSD card slot1x microSD card slot
nvSRAM64 kbit64 kbit
Communication
Ethernet2x 10/100 Mbit/s2x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG2x 2.0 Host, 1x 2.0 OTG
Serial1x RS232, 1x RS4851x RS232, 1x RS485
CAN1x CAN 2.01x CAN 2.0
DIO2x DIO (24 V/up to 800 mA)2x DIO (24 V/up to 800 mA)
AIO2x AIN (0…24 V)2x AIN (0…24 V)
Display/Touch
LCD interface1x RGB 24 bit up to 1366 x 768 @60 fps1x RGB 24 bit up to 1366 x 768 @60 fps
Touch1xI2C, 1x USB1x I2C, 1x USB
Other
Power supply24 V DC ±20 %24 V DC ±20 %
Power consumptionLinux running <1,5 WLinux running <1.5 W
Temperature range0° C…+70° C0° C…+70° C
Operating systemEmbedded Linux (Yocto Distribution)Embedded Linux (Yocto Distribution)
Form factor105.5 x 67 mm (4.3”)105.5 x 67 mm (4.3”)
External RTC1x on Baseboard1x on Baseboard
RTC bufferingBattery on Baseboard CR1220Battery on Baseboard CR1220
Debug1x Console1x Console
Expansion plug2x USB, 1x I2C2x USB, 1x I2C1x SPI instead of nvSRAM
Audio1x Buzzer1x Buzzer
SecuritySecure Boot, RNG, AES-128Secure Boot, TRNG, Tamper Detection, Secure Storage (including 32 kb Secure RAM), Cryptographic Accelerators (AES-128, DES 3DES, ARC4, MD5, SHA-1, SHA-224, SHA-256, RSA/ECDSA), Secure Debug, OTP Space

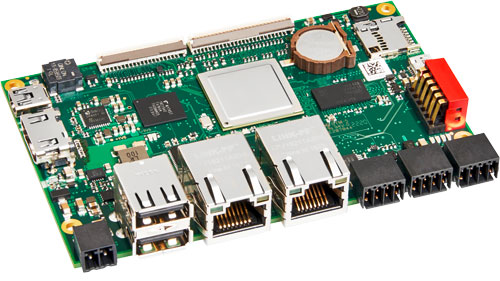

BL i.MX6 Solo/Dual

BL i.MX6 Solo/Dual

Multitalent for graphics and comminication applications

  • i.MX6 Solo, 1x Arm® Cortex-A9 @800 MHz
  • i.MX6 Dual, 2x Arm® Cortex-A9 @800 MHz
  • 512 MB up to 2 GB DDR3-RAM

Árajánlat kérése

Tartozékok

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Szoftver

Embedded Linux (Yocto Distribution)

Műszaki adatok

FunctionStandard Layout SOLOStandard Layout DUALOptions
Microprocessor
CPUi.MX6 Solo, 1x Arm® Cortex®-A9 @800 MHzi.MX6 Dual, 2x Arm® Cortex®-A9 @800 MHz, 2D GPU and 3D GPU
Memory Baseboard
DDR3-RAM2 GB2 GB512 MB
NOR-Flash1 MB1 MB
eMMC4 GB4 GBUp to 128 GB
SD card1x microSD card slot1x microSD card slot
nvSRAM64 kbit64 kbit
Communication
Ethernet2x 10/100 Mbit/s2x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG2x 2.0 Host, 1x 2.0 OTG
DIO4x DIO (24 V/up to 800 mA)4x DIO (24 V/up to 800 mA)
Serial1x RS232, 1x RS4851x RS232, 1x RS485
CAN1x CAN 2.01x CAN 2.0
Display/Touch
LCD interfaceRGB 24 bit, LVDS, HDMI, up to 1920 x 1080 @60 fpsRGB 24 bit, LVDS, HDMI up to 1920 x 1080 @60 fps
Touch1xI2C, 1x USB1x I2C, 1x USB
Other
Power supply24 V DC ±20 %24 V DC ±20 %
Power consumption24 V max. 3 A24 V max. 3 A
Temperature range0° C…+70° C0° C…+70° C
Operating systemEmbedded Linux (Yocto Distribution)Embedded Linux (Yocto Distribution)
Form factor105.5 x 67 mm (4.3”)105.5 x 67 mm (4.3”)
External RTC1x on Baseboard1x on Baseboard
RTC bufferingBattery on Baseboard CR1220Battery on Baseboard CR1220
Debug1x Console1x Console
Expansion plug1x PCIe, 1x USB, 1x SDIO 1x UART, 1x SAI, 15x GPIO1x PCIe, 1x USB, 1x SDIO 1x UART, 1x SAI, 15x GPIO
Audio1x Buzzer1x Buzzer
SecuritySecure Boot, RNG, Tamper Detection, Secure Storage, AES-128, DES 3DES, ARC4, MD5, SHA-1, SHA-224, SHA-256, 16 kb, Secure RAM, tamper-resistant RTC, Secure Debug, OTP SpaceSecure Boot, RNG, Tamper Detection, Secure Storage, AES-128, DES 3DES, ARC4, MD5, SHA-1, SHA-224, SHA-256, 16 kb, Secure RAM, tamper-resistant RTC, Secure Debug, OTP Space
BL i.MX8M Mini OSM-S

BL i.MX8M Mini OSM-S

Baseboard a címen Open Standard Module™ (OSM) és nagy teljesítményü processzor
Quad Core 1,6 GHz

  • 4x Arm® Cortex-A53 @1,6 GHz
  • 1x Arm® Cortex-M4 @400 MHz
  • 1 GB-tól 4 GB LPDDR4-RAM

Árajánlat kérése

Tartozékok

  • Hálózati csatlakozókészlet
  • Hálózati tápegység
  • Hálózati microSD-kártya

Szoftver

  • Embedded Linux (Yocto Distribution)

Műszaki adatok

FunctionStandard LayoutOptions
Microprocessor
CPU4x Arm® Cortex®-A53 @1.6 GHz, 1x Arm® Cortex®-M4 @400 MHz, 2D GPU, 3D GPU
Memory SOM Modul
LPDDR4-RAM4 GB1 GB, 2 GB
NOR-Flash2 MB
Memory SOM Baseboard
eMMC32 GB4 GB up to 128 GB
EEPROM1 kb
SD card1x microSD Card Slot
Communication
Ethernet1x 1 Gbit/s, 1x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG
DIO4x DIO (24 V/up to 800 mA)
Serial1x RS232, 1x RS485
CAN1x CAN 2.0
Display/Touch
LCD interface1x HDMI, 1x LVDS, up to 1920 x 1080 @60 fps
Touch1x I2C, 1x I²C, 1x USB
Other
Power supply24 V DC ±20 %
Power consumptionLinux running < 2 W
Temperature range0° C…+70° C
Operating systemEmbedded Linux (Yocto Distribution)
Form factor105.5 x 67 mm (4.3”)
RTC external (I²C)1x on Baseboard
RTC bufferingBattery on Baseboard CR1220
Debug1x Console
Expansion plugs1x I2S, 1x I²C, 1x I²S, 1x SPI, 1x SDIO (8-bit), Camera interface 1x MIPI CSI (4-lane)
Audio1x Buzzer
SafetyHAB Secure Boot, TrustZone, True RNG, RSA bis zu 4096, AES-128/192/256, 3DES, ARC4, MD-5, SHA bis zu 256, ECC, Secure JTAG
BL i.MX8M Mini

BL i.MX8M Mini

Nagyteljesítményű, négymagos, 1.6 GHz-es processzorral felszerelt alaplap

  • 4 db Arm® Cortex-A53 @1.6 GHz
  • 1 db Arm® Cortex-M4 @400 MHz
  • 1 GB -tól 4 GB LPDDR4-RAM

Árajánlat kérése

Tartozékok

  • Hálózati csatlakozókészlet
  • Hálózati tápegység
  • Hálózati microSD-kártya

Szoftver

  • Beágyazott Linux (Yocto-disztribúció)
  • Optional CODESYS® SoftSPS
  • arm SystemReady IR certified V1.0

Műszaki adatok

FunctionStandard LayoutOptions
Microprocessor
CPU4x Arm® Cortex®-A53 @1.6 GHz, 1x Arm® Cortex®-M4 @400 MHz, 2D GPU and 3D GPU
Memory SoM Module
LPDDR4-RAM1 GBUp to 4 GB
NOR-Flash2 MB
Memory SoM Baseboard
eMMC8 GBUp to 128 GB
SD card1x microSD card slot
Communication
Ethernet1x 1 Gbit/s, 1x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG
DIO4x DIO (24 V/up to 800 mA)
Serial1x RS232, 1x RS485
CAN1x 2.0
Display/Touch
LCD interface1x HDMI, 1x LVDS, up to 1920 x 1080 @60 fps
Touch1x I2C, 1x USB
Other
Power supply24 V DC ±20 %
Power consumptionLinux running < 2 W
Temperature range0° C…+70° C
Operating systemEmbedded Linux (Yocto Distribution), Microsoft Windows 10 IoT Core
Form factor105.5 x 67 mm (4.3”)
External RTC1x on Baseboard
RTC bufferingBattery on Baseboard CR1220
Debug1x Console
Expansion plug1x I2S, 1x PCIe, 1x SPI, 1x SDIO (8 Bit), Camera interface 1x MIPI CSI (4-lane)
Audio1x Buzzer
SecurityHAB Secure Boot, TrustZone, True RNG, RSA up to 4096, AES 128/192/256, 3DES, ARC4, MD-5, SHA up to 256, ECC, Secure JTAG
BL STM32MP157

BL STM32MP157

Három processzor teljesítménye segíti egyszerre a projektet

  • 2 db Arm® Cortex-A7 @650 MHz
  • 1 db Arm® Cortex-M4 @200 MHz
  • 256 MB -tól 512 MB DDR3-RAM

Árajánlat kérése

Tartozékok

  • Hálózati csatlakozókészlet
  • Hálózati tápegység
  • Hálózati microSD-kártya

Szoftver

  • Beágyazott Linux (Yocto-disztribúció)

Műszaki adatok

FunctionStandard LayoutOptions
Microprocessor
CPUSTM32MP157A 2x Arm® Cortex®-A7 @650 MHz, 1x Arm® Cortex®-M4 @200 MHz, 3D GPU
Memory SoM Modul
DDR3-RAM512 MB256 MB
NAND-Flash512 MB256 MB
NOR-Flash2 MB
Memory SoM Baseboard
eMMC4 GB128 GB
SD-Card1x microSD Slot
Communication
Ethernet2x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG
Serial1x RS232, 1x RS485
CAN1x CAN 2.0
DIO2x DIO (24V/up to 800mA)
AIO2x AIN (0...24V)
Display/Touch
LCD Interface1x RGB 24 bit, 1x LVDS, 1x HDMI up to 1024 x 600 @60fps
Touch1x I2C, USB
Other
Power supply24V DC ±20%
Power consumptionLinux running < 2W
Temperature range0°C…+70°C
Operating system Embedded Linux (Yocto Distribution)
Form factor105.5 x 67 mm (4.3”)
Internal RTCon SoM with Quartz
External RTC1x on Baseboard
RTC bufferingBattery on Baseboard CR1220
Debug1x Console
Audio 1x Buzzer
SecurityTrustZone, SHA-256, MD5, HMAC, 3x Tamper Pins with 1 active, Secure RAMs, Secure Peripherals, Secure RTC, Analog true RNG, 98-bit unique ID
BL Pi-Tron CM4

BL Pi-Tron CM4

Compute Module 4 your performance boost

  • Broadcom BCM2711, 4x Arm® Cortex-A72, 64-bit SoC @1.5 GHz
  • Up to 8 GB LBDDR4 RAM
  • Suitable for CODESYS SoftSPS

Árajánlat kérése

Tartozékok

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Szoftver

  • Raspbian Linux (not preinstalled)

Műszaki adatok

FunctionStandard Equipment
Microprocessor
CPUBroadcom BCM2711, 4x Arm® Cortex®-A72, 64-bit SoC @1.5 GHz, H.265 (HEVC) up to 4Kp60 decode, H.264 up to 1080p decode, 1080p30 encode, OpenGL ES 3.0 graphic
Memory
LPDDR4-RAM2 GByte optional 1 GByte, 4 GByte, 8 GByte
eMMC*16 GByte optional Lite/ 8 GByte/32 GByte (Lite: without eMMC only with microSD Card)
EEPROM32 kbit
SD CardCM4 Lite: 1x microSD Card Slot for Operating System, CM4 8 GByte, 16 GByte, 32 GByte: 1x microSD Card Slot for data
Communication
Ethernet1x 1 Gbit/s, 1x 10/100 Mbit/s
USB1x 2.0 Host, 1x 2.0 OTG: only to program eMMC
I/O28x GPIO, supports up to 5x UART, 5x I2C, 5x SPI, 2x PWM, 1x SDIO (4 Bit), M.2 B-Key 3042 (PCIe 1-lane Host, Gen 2 (5 Gbps))
DIO4x DIO (24 V/up to 800 mA)
Serial1x RS232, 1x RS485 (Modbus capable)
CAN1x CAN 2.0B/FD
WLAN/BluetoothOptional 2.4 GHz/5.0 GHz IEEE 802.11b/g/n/ac wireless BT 5.0, BLE
Display/Touch
LCD interface1x DSI 2-lane (up to 1 Gbit/s per lane - Rpi-DSIO 22 pol.), 1x DSI 4-lane (up to 1 Gbit/s per lane - DSI1 40 pol. FFC), 1x HDMI 2.0 (up to 4Kp60 - HDMI0), 1x HDMI (HDMI - 40 pol. FFC)
Touchoptional via 1x I2C, 1x USB
Camera interface1x CSI 2-lane (MIPI Rpi-CSI0 22 pol.)
Other
Power supply24 V DC ±20 %
Power consumption3.4 W ... 9.6 W
Temperature range0 °C…+55 °C
Operating systemRaspbian Linux (not preinstalled)
Form factor105.5 x 69.6 mm
External RTC1x on Baseboard
RTC bufferingCR1220
Debug1x Console
Expansion plug1x M.2, Raspberry Pi GPIO Header 40-Pin
ApprovalsCE
*When using eMMC memory, booting from the SD-Card is not possible
BL Pi-Tron CM3+

BL Pi-Tron CM3+

Ipari Raspberry Pi

  • Broadcom BCM 2837BO 4 db Arm® Cortex-A53 @1.2 GHz
  • 3D videokezelő, 1 GB-os LPDDR2 RAM
  • CODESYS SoftPLC-hez ajánlott


Árajánlat kérése

Tartozékok

  • Hálózati csatlakozókészlet
  • Hálózati tápegység
  • Hálózati microSD-kártya

Szoftver

  • Raspbian Linux
  • Opcionális CODESYS SoftSPS

Műszaki adatok

FunctionStandard-Equipment
Microprocessor
CPUBroadcom BCM2837BO 4x Arm® Cortex®-A53 @1.2 GHz, 3D Video Engine
Memory
LPDDR2-RAM1 GB
eMMC*Compute module CM3+ 8 GB/32 GB
SD cardCompute module CM3+ Lite, 1x microSD card slot for operating systems
FRAM16 kbit
Communication
Ethernet2x 10/100 Mbit/s
USB2x 2.0 Host
I/O2x UART, 2x I2C, 2x SPI, 28x GPIO, 2x PWM, 1x SDIO (4 Bit)
DIO4x DIO (24 V/up to 800 mA)
Serial1x RS232, 1x RS485
CAN1x 2.0
Display/Touch
LCD interface1x 2-lane DSI Display Interface (up to 1 Gbit/s per lane, DSI 1) 1x Micro-HDMI 1.3a 1080p @30 fps
Touch1x I2C, 1x USB
Camera interface1x 2-lane CSI Camera Interface (CSI 1)
Other
Power supply24 V DC ±20 %
Power consumption3.4 W…9.6 W (without peripherals)
Temperature range0 °C…+55 °C
Operating systemRaspbian Linux (not preinstalled)
Form factor105.5 x 67 mm (4.3“)
External RTC1x on Baseboard
RTC bufferingBattery on Baseboard CR1220
Debug1x Console
Expansion plugRaspberry Pi 40-Pin GPIO Header
*versions with eMMC memory do not feature an SD card slot
PiXtend® V2 -S- Pi 4

PiXtend® V2 -S- Pi 4

Fast, reliable and connection friendly

  • Raspberry Pi 4  single-board computer
  • Retain memory 32 Bytes Flash EEPROM
  • Suitable for CODESYS®  SoftPLC

Árajánlat kérése

Tartozékok

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Szoftver

  • Raspbian Linux
  • Optional CODESYS® SoftPLC
  • C
  • Python

Műszaki adatok

FunctionPIXTEND® V2-S-PI 4PIXTEND® V2-S-
CPUBroadcom BCM 2711, Raspberry Pi 4 Model BBroadcom BCM 2837B0, Raspberry Pi 3 Model B+
Hardware
Power Supply24 V DC ±20 %24 V DC ±20 %
Retain-/Remanence memory32 Bytes Flash EEPROM32 Bytes Flash EEPROM
Real Time Clock (RTC) With battery buffering With battery buffering
Temperature- and Air HumidityUp to 4 DHT11, DHT22, AM2302Up to 4 DHT11, DHT22, AM2302
RS2321x 1x
RS485per USB-Dongleper USB-Dongle
Digital inputs (DI)8x 3,3 / 5 / 12 / 24 V8x 3,3 / 5 / 12 / 24 V
Digital outputs (DO)4x PNP 5 / 12 / 24 V, 0.5 A4x PNP 5 / 12 / 24 V, 0.5 A
Analog voltage inputs (AI-U) 2x 0...5 V, 0...10 V, 10 Bit2x 0...5 V, 0...10 V, 10 Bit
Analog voltage outputs (AO)2x 0...10 V, 10 Bit 2x 0...10 V, 10 Bit
Relais4x, max. 230 V / 6 A4x, max. 230 V / 6 A
PWM-/Servo outputs2x 16 Bit, 2x 8 Bit resolution, 5 V2x 16 Bit, 2x 8 Bit resolution, 5 V
GPIO4x 5 V GPIO4x 5 V GPIO
Interfaces and I/OsShort circuit proof, supply with reverse polarity and overload protection (self-resetting safety device)Short circuit proof, supply with reverse polarity and overload protection (self-resetting safety device)
Max. temperature range0 °C…+50 °C0 °C…+50 °C
Dimension without housing166.3 x 101.8 x 27 mm166.3 x 101.8 x 27 mm
Top hat rail housingAluminiumAluminium
Supported RPI models1 B+, 2 B, 3 B, 3 B+, 4 B1 B+, 2 B, 3 B, 3 B+, 4 B
PiXtend® V2 -L- Pi 4

PiXtend® V2 -L- Pi 4

Powerful and industrially compatible

  • Raspberry Pi 4 B single-board computer
  • Retain memory 64 Bytes Flash EEPROM
  • Suitable for CODESYS® SoftPLC

Árajánlat kérése

Tartozékok

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Szoftver

  • Raspbian Linux
  • Optional CODESYS® V3 SoftPLC
  • Python

Műszaki adatok

FunctionPIXTEND® V2-L-PI 4PIXTEND® V2-L-
CPUBroadcom BCM 2711, Raspberry Pi 4 Model BBroadcom BCM 2837B0, Raspberry Pi 3 Model B+
Hardware
Power Supply24 V DC ±20 %24 V DC ±20 %
Retain-/Remanence memory64 Bytes Flash EEPROM64 Bytes Flash EEPROM
Real Time Clock (RTC) With battery buffering With battery buffering
Temperature- and Air HumidityUp to 4 DHT11, DHT22, AM2302Up to 4 DHT11, DHT22, AM2302
CAN Bus1x **1x **
RS2321x *1x *
RS4851x *, Modbus RTU capable1x *, Modbus RTU capable
Digital inputs (DI)16x 3,3 / 5 / 12 / 24 V16x 3,3 / 5 / 12 / 24 V
Digital outputs (DO)12x PNP 5 / 12 / 24 V, 0,5 A12x PNP 5 / 12 / 24 V, 0,5 A
Analog voltage outputs (AI-U)4x 0...5 V, 0...10 V, 10 Bit4x 0...5 V, 0...10 V, 10 Bit
Analog current inputs (AI-I)2x 0...20 mA, 10 Bit 2x 0...20 mA, 10 Bit
Analog voltage outputs (AO)2x 0...10 V, 10 Bit2x 0...10 V, 10 Bit
Relais4x, max. 230 V / 6 A4x, max. 230 V / 6 A
PWM-/Servo outputs6x, 16 Bit resolution, 5 V6x, 16 Bit resolution, 5 V
GPIO4x 5 V GPIO4x 5 V GPIO
Interfaces and I/OsShort circuit proof, supply with reverse polarity and overload protection (self-resetting safety device)Short circuit proof, supply with reverse polarity and overload protection (self-resetting safety device)
Max. temperature range0 °C…+50 °C0 °C…+50 °C
Dimension without housing236.3 x 101.8 x 27 mm236.3 x 101.8 x 27 mm
Top hat rail housingAluminiumAluminium
Extension Board & Basic1 B+, 2 B, 3 B, 3 B+, 4 B1 B+, 2 B, 3 B, 3 B+, 4 B
*RS232 and RS485 cannot be operated simultaneously
**CAN interfaces and analog outputs cannot be used together
PiXtend® V2 -S-

PiXtend® V2 -S-

Gyors, megbízható és könnyen csatlakoztatható

  • Raspberry Pi 3B+ egykártyás számítógép
  • Nem felejtő memória 32 Byte Flash EEPROM
  • CODESYS SoftPLC-hez ajánlott

Árajánlat kérése

Tartozékok

  • Hálózati csatlakozókészlet
  • Hálózati tápegység
  • Hálózati microSD-kártya

Szoftver

  • Raspbian Linux
  • Opcionális CODESYS SoftPLC
  • C
  • Python

Műszaki adatok

HardwarePiXtend® V2 -S-
Power supply24V DC ±20%
Retain-/Remanence memory32 Bytes Flash EEPROM
Real Time Clock (RTC)with battery buffering
Temperature- and Air Humidity Sensorsup to 4 DHT11, DHT22, AM2302
RS2321x
RS485via USB-Dongle
Digital inputs (DI)8x 3,3 / 5 / 12 / 24V
Digital outputs (DO)4x PNP 5 / 12 / 24V, 0,5A
Analog voltage inputs (AI)2x 0…5V, 0…10V, 10 Bit
Analog voltage outputs (AO)2x 0…10V, 10 Bit
Relais4x, max. 230V / 6A
PWM-/Servo outputs2x 16 Bit, 2x 8 Bit resolution, 5V
GPIO4x 5V GPIO
Interfaces and I/OsShort circuit proof, supply with reverse polarity and overload protection (self-resetting safety device)
Max. temperature range0°C…+50°C
Dimension - without housing166,3 x 101,8 x 27 mm
Top hat rail housingAluminium
Supported RPI models1 B+, 2 B, 3 B, 3 B+, 4 B (Extension Board & Basic)
Software
Short cycle times2,5 ms (400 Hz)
Support for:CODESYS V3, C- and Phyton Library, FHEM, Node-RED
PiXtend® V2 - L-

PiXtend® V2 - L-

Gyors, megbízható és könnyen csatlakoztatható

  • Raspberry Pi 3B+ egykártyás számítógép
  • Nem felejtő memória 64 Byte Flash EEPROM
  • CODESYS SoftPLC-hez ajánlott

Árajánlat kérése

Tartozékok

  • Hálózati csatlakozókészlet
  • Hálózati tápegység
  • Hálózati microSD-kártya

Szoftver

  • Raspbian Linux
  • Opcionális CODESYS SoftPLC
  • C
  • Python

Műszaki adatok

HardwarePiXtend® V2 -L-
Power supply24V DC ±20%
Retain-/Remanence memory64 Bytes Flash EEPROM
Real Time Clock (RTC)with battery buffering
Temerature-and Air Humidity Sensorsup to 4 DHT11, DHT22, AM2302
CAN Bus1x **
RS2321x *
RS4851x *, Modbus RTU capable
Digital inputs (DI)16x 3,3 / 5 / 12 / 24V
Digital outputs (DO)12x PNP 5 / 12 / 24V, 0,5A
Analog voltage inputs (AI-U)4x 0…5V, 0…10V, 10 Bit
Analog current inputs(AI-I)2x 0…20mA, 10 Bit
Analog outputs (AO)2x 0…10V, 10 Bit
Relais4x, max. 230V / 6A
PWM-/Servo outputs6x, 16 Bit resolution, 5V
GPIO4x 5V GPIO
Interfaces and I/OsShort circuit proof, supply with reverse polarity and overload protection (self-resetting safety device)
Max. temperature range0°C…50°C
Dimension- without housing236,3 x 101,8 x 27 mm
Top hat rail housingAluminium
Supported RPI Models1 B+, 2 B, 3 B, 3 B+, 4 B (Extension Board & Basic)
Software
Short cycle times5 ms (200 Hz)
Support for:CODESYS V3, C- and Phyton Library, FHEM, Node-RED
*RS232 and RS485 cannot be operated simultaneously
**CAN interfaces and anloge outputs (AO) cannot be used together
to top
